Dual Zone toms?

Building your own? Need help with your designs? You've come to the right place.
Post Reply
Ronyd
Posts: 199
Joined: Sun Apr 18, 2021 12:20 pm

Dual Zone toms?

Post by Ronyd »

With a 2nd module, thought i experimenting with a dual zone tom.

Issue is tapping the rim piezo (without head attached) produces same note as the head piezo?

My connections re correct according to the manual for Roland dual zone. Tip => head, Ring => rim

The rim piezo is mounted on an L-Bracket attached to the shell. I'll try attached piezo directly to the shell next, but should not be any difference, but i'll try.

Not sure what i'm missing to get the dual zone to work properly.
User avatar
Rob
Site Admin
Posts: 4668
Joined: Sat Aug 01, 2009 2:04 pm

Re: Dual Zone toms?

Post by Rob »

How about a screenshot of your settings.
Ronyd
Posts: 199
Joined: Sun Apr 18, 2021 12:20 pm

Re: Dual Zone toms?

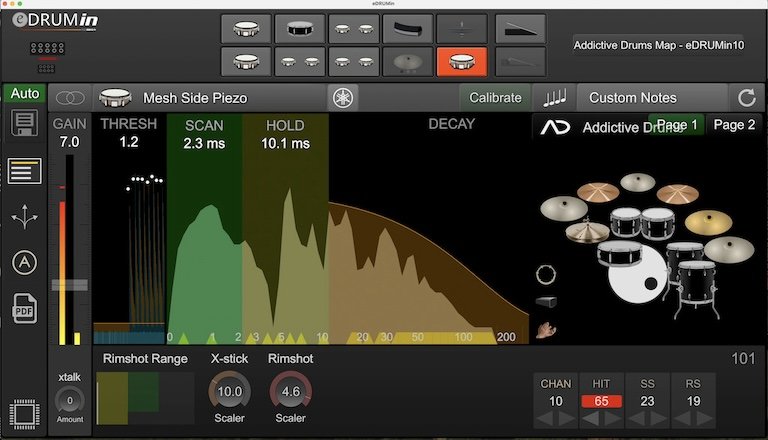

Post by Ronyd »

Rob wrote:
Sun Jun 30, 2024 3:19 pm
How about a screenshot of your settings.
Attachments
User avatar
Rob
Site Admin
Posts: 4668
Joined: Sat Aug 01, 2009 2:04 pm

Re: Dual Zone toms?

Post by Rob »

The scrolling view and the VU meters are sowing no signal from the rim sensor, so it's probably a wiring issue of the piezo is dead.
Ronyd
Posts: 199
Joined: Sun Apr 18, 2021 12:20 pm

Re: Dual Zone toms?

Post by Ronyd »

I'll re-check wiring again and piezo. thankx Rob
Ronyd
Posts: 199
Joined: Sun Apr 18, 2021 12:20 pm

Re: Dual Zone toms?

Post by Ronyd »

Ronyd wrote:
Wed Jul 03, 2024 12:10 am
I'll re-check wiring again and piezo. thankx Rob
Wow Rob, right on the money. I use neutrik TRS jacks. Before i screwed the barrel on the ring was shorting to the ground. Very Wierd. :shock:

All good now, many thanks. Guess always have to double check and re-check. :roll:
Ronyd
Posts: 199
Joined: Sun Apr 18, 2021 12:20 pm

Re: Dual Zone toms?

Post by Ronyd »

Ronyd wrote:
Wed Jul 03, 2024 1:01 am
Ronyd wrote:
Wed Jul 03, 2024 12:10 am
I'll re-check wiring again and piezo. thankx Rob
Wow Rob, right on the money. I use neutrik TRS jacks. Before i screwed the barrel on the ring was shorting to the ground. Very Wierd. :shock:

All good now, many thanks. Guess always have to double check and re-check. :roll:
Attachments
Neutrik TRS Connector.png
Neutrik TRS Connector.png (516.54 KiB) Viewed 2634 times
